Biofeedback

Mind-Body Connection Through Real-Time Insights

Biofeedback solutions from BEE Medic integrate into your neurofeedback sessions, optimizing your treatment and enhancing the mind-body connection. Much like neurofeedback, biofeedback devices measure physiological responses. The body's responses are then displayed to the client within an engaging animation. BEE Medic provides two biofeedback recording devices and software that seamlessly integrate with your existing neurofeedback equipment.

Biofeedback Devices

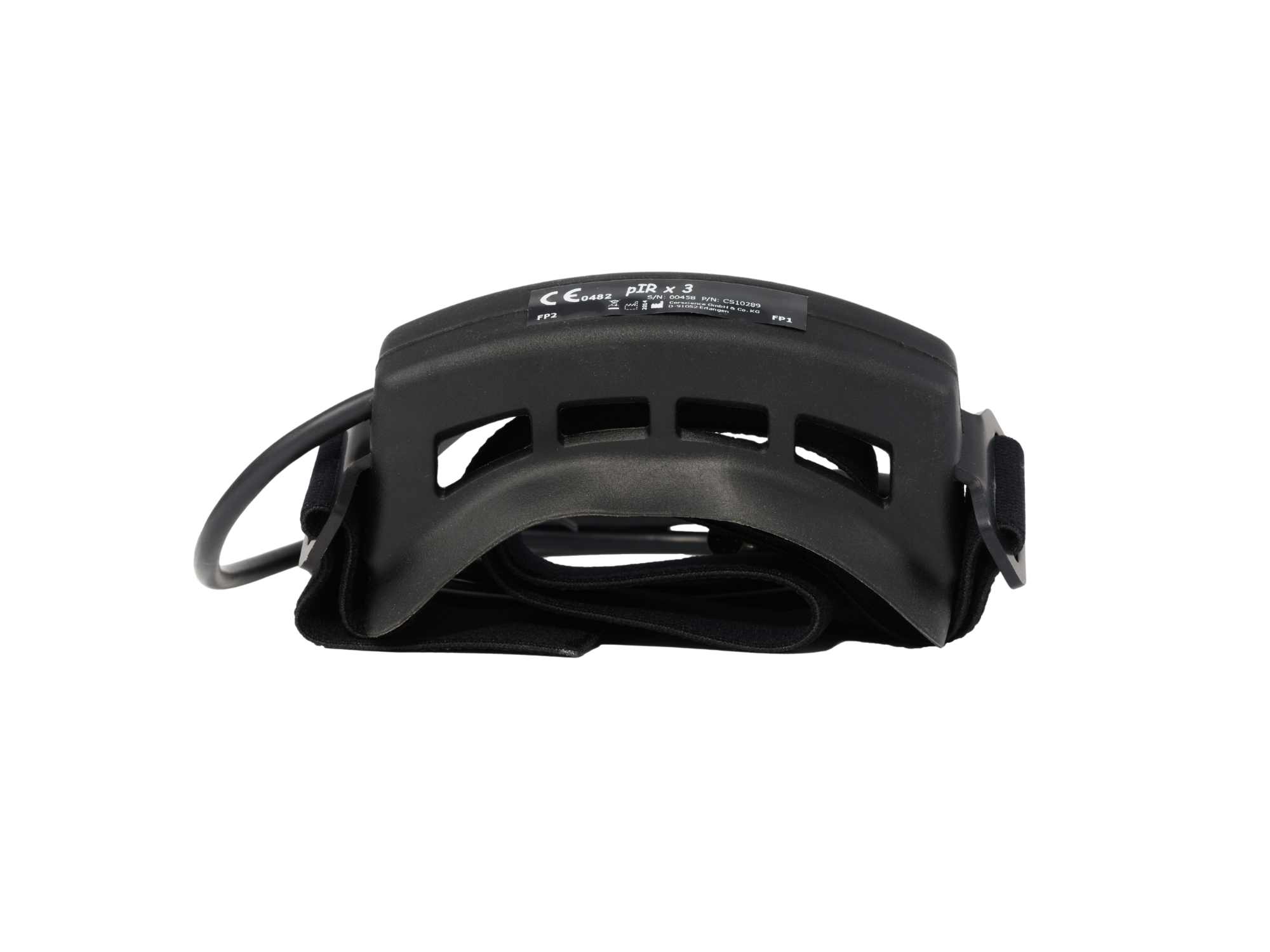

pIRx3

Biofeedback device for measurement of temperature radiation from the forehead through infrared sensors during HEG (hemoencephalography)-biofeedback-therapy.

Can only be used in combination with a NeuroAmp.

Please inquire for pricing.

Features:

Infrared triple-sensor (pIRx3) with headband for measurement of thermal radiation (passive infrared, pIR)
Functional device design for easy and comfortable attachment to the forehead
Position of infrared sensors at the EEG-electrode placements Fpz, Fp1 and Fp2
Easy to handle
Including 2 spare replacement straps
Integrated highly precise sensor amplifier and signal processing electronics
Integrated cable (2m) for direct connection to EEG NeuroAmp® II or EEG NeuroAmp® II.5s
Control of HEG-Biofeedback training via software Cygnet©
Approved as a medical device in the European Union and in the USA

Technical specifications:

High-performance design with integrated sensors, headband and direct connection to EEG NeuroAmp® II and EEG NeuroAmp® II.5s
Three integrated infrared sensors with wavelength range 5-15µm
Sensor-field of view: each 60°
Temperature range: 29-43°C, resolution: 0.01°K, reaction time: <0.15s
Power-supply via EEG NeuroAmp® device

Included in delivery:

pIRx3 biofeedback device with three infrared sensors, headband and integrated cable (2m) for direct connection to EEG NeuroAmp® II or EEG NeuroAmp® II S.5
pIRx3 spare replacement straps (2 pcs)
Instruction manual

Shop Now

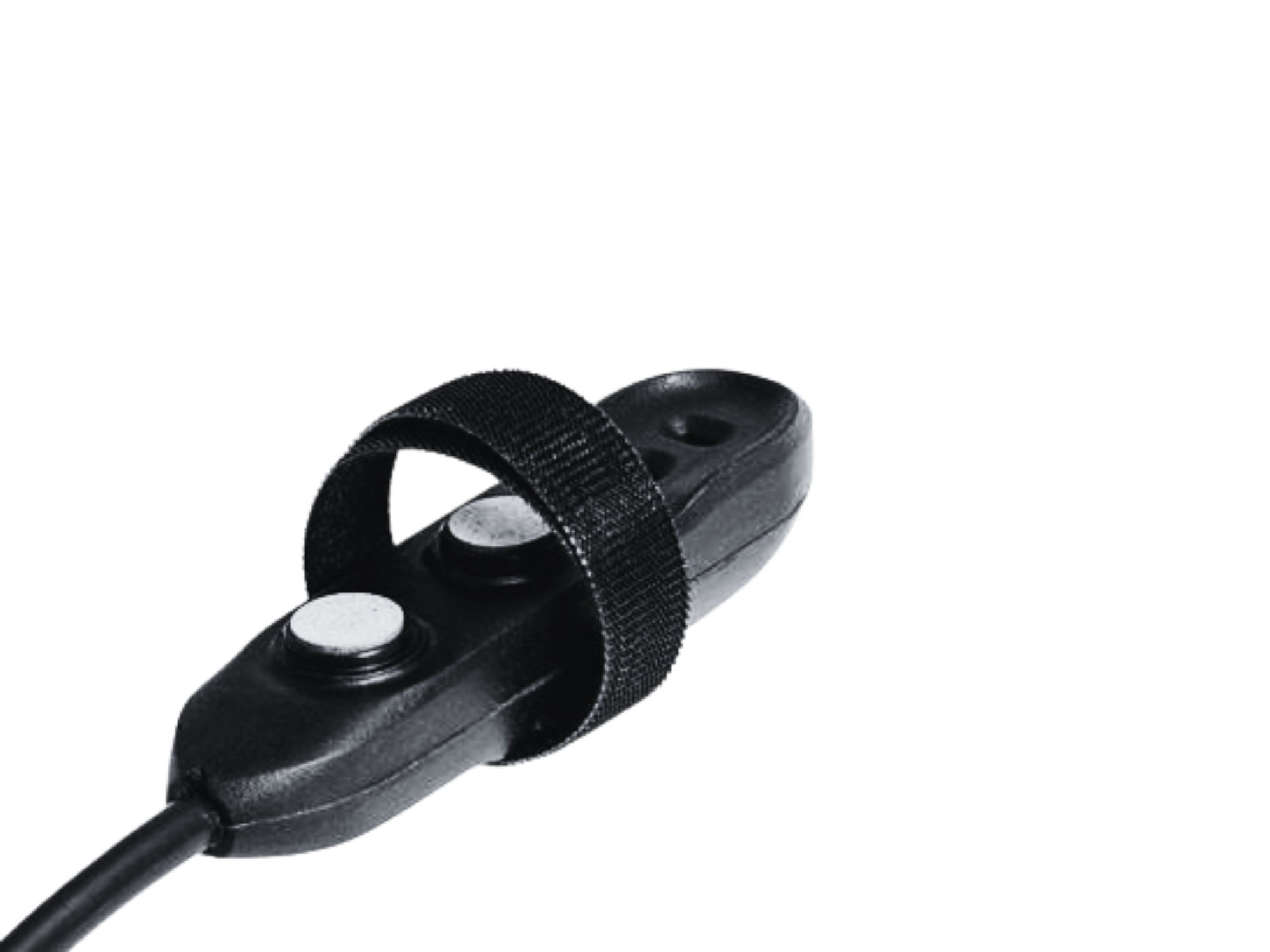

Combination Sensor

Biofeedback device with three sensors for accurate and low-noise measurement of physiological stress parameters: skin conductance, temperature and heart rate, from the skin surface (finger) in order to monitor this information during neurofeedback therapy.

Can only be used in combination with a NeuroAmp.

Please inquire for pricing.

Features:

Measurement device for highly accurate recording of physiological stress parameters: skin conductance, temperature and heart rate
Functional housing, three integrated sensors and strap for attachment to the finger
Sensor measurement directly from the skin surface (finger)
Very easy handling
Integrated sensor-amplifier and signal processing electronics
Integrated cable for direct connection to EEG NeuroAmp® II or EEG NeuroAmp® II.5s
Approved as a medical device

Technical specifications:

Functional housing, integrated sensors and direct connection to EEG NeuroAmp® II and EEG NeuroAmp® II.5s
Three integrated sensors for skin conductance (1), temperature (1) and heart-rate (2)
Skin conductance (measuring range): 0.2-100µMho
Temperature (measuring range): 20-40°C, response time: 60s
Heart-rate frequency: optic measurement with 940nm and 660nm at the fingertip, sampling rate: 62 measurements/s
Power supply via EEG NeuroAmp® device

Included in delivery:

Combi Sensor Biofeedback device
Band for fastening the sensor to the finger
Kinesiolgie tape (black, 1,2cm x 5m)
Instruction manual

Shop Now

pIRx3

Combination Sensor

Software

Alive Biofeedback Software

Biofeedback software which allows the use of any BEE Medic animation in tracking and training physiological response. Requires the combination sensor.
